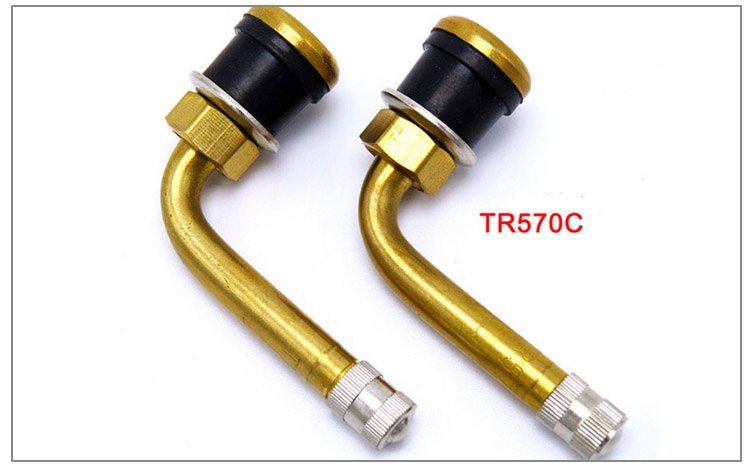

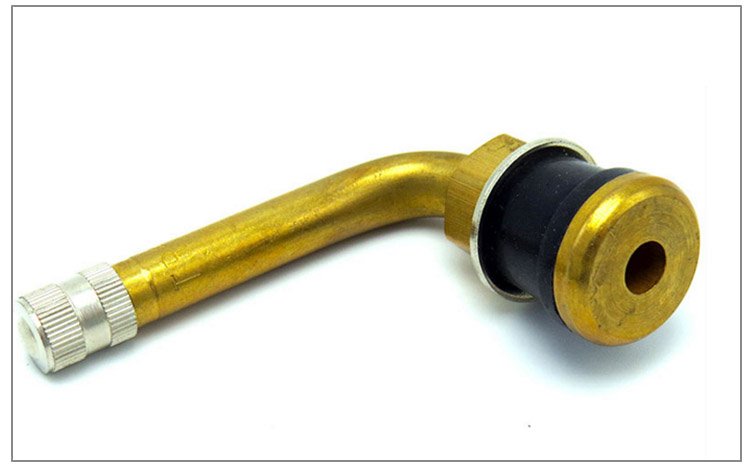

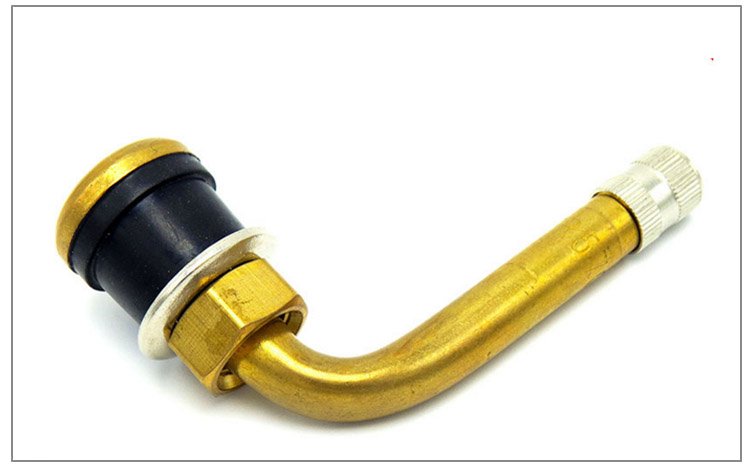

Tire valve TR570-C features90 degreen bending and has a 19mm diameter bottom hole,is suitable for using on truck tubeless tire.
Tire valve TR570-C Simple and fast installation,you don't need to use any special tools to install,the installation won't harm your tire.
Tire valve TR570-C Strong and tough brass make the valve stem solid and not easy to be damaged,is wear resistant and deforomation resistant.You can clean it and maintain it easily,it features compact size and lightweight,you can put it in your pocket for easy carrying.
Tire valve TR570-C is long lasting and is a reliable parts,a good choice for replacing the previous valve stem that is worn,lost or damaged.

Tire valve TR570-C

Tire valve TR570-C

Tire valve TR570-C

Tire valve TR570-C

Tire valve TR570-C Advantages

1. Tire valve TR570-C
2. Our factory is one of top leading manufacturers in China.
3. Belong to clamp-in tubeless valves
4. Cold, heat and ozone resistant
5. All the products of stem are painted with chemlok
6. We can produce any kinds of clamp-in tubeless valves according samples or drawing

Tire valve TR570-C Installation method

1. Remove valve core and deflate
2. Separate tire toe port and Unloaded from its rims
3. Remove tire valves
4. Clean the hole on the rim
5. Check and make sure the valve core is screwed.
6. Install the new tire valve from inner part of rims
7. Install correctly and inflate untill it reaches the rated pressure
8. Screw on the new cap

Tire valve TR570-C Notes

1 Different models of tire valves are suitable for different types of tires and vehicles, the valve can not be replaced when using.

2 Caution when using the tire valves, use a pressure gauge to detect; dissipate heat before inflating; keep clean to avoid impurities entering into the tire to influence the tire air pressure; using soapy water to detect leaks.

3 The tire valve has rubber material, it may age and have cracks after time, the general useful life is 3--4 years, similar to the tire, so we need to change the tire valves together with the tires.

4 Store in a dry ventilated and protected from heat exposure, anti-corrosion, no oil warehouse.

Shengshi Weiye still produces V3.20.4 tire valve ,Tire Valve Tr574  ,Metal Clamp-in tire valve for trucks,
